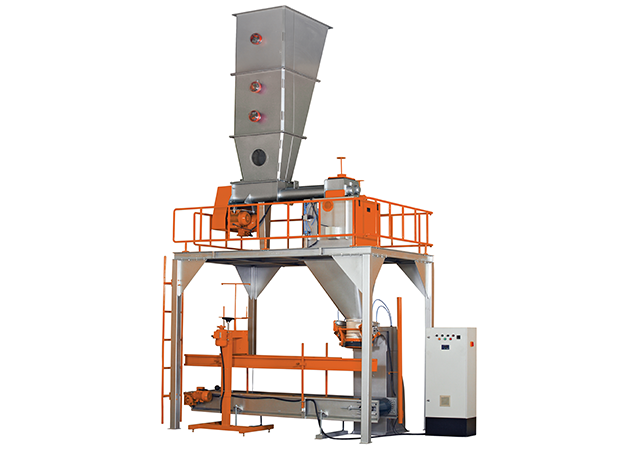

AUTOMATİC PACKİNG

CAPACITY: Capacity change according to sacked product and required tolerance between 12 ton/hour and 20 ton/hour. (operate the undertake is 15ton/hour capacity in flour and similar character products with the  +- 50 gr. average error margin rate per sack)

VALUE RANGE: Value range seperately set up by user.

WEIGHT SHOW: Weight show screen is 4 digits.

FAST – SLOW REVOLUTION: There are two programmable value range in the system. Separately this values loading kilos may enter to system. Turn to slow revolution applicate adjust is made by system adopted automaticly with most sensitive and fast weighing. Optimum speed adjust is made automaticly according to weighing flour type and silo level.

TOLERANCE: Top or bottom tolerances can set up seperately. At the weighing result out of this tolerances any flour does not comedown from weighing bunker with out operator knowledge and prevent.

SACK SIZE: Recommended sack size 65 x 95 cm for the high capacity bagging.

REQUIRED SACK SIZE: set up how many sack will be fill before start bagging progress. Reuqired sack quantity can change while the bagging. System can stop before to reach the required values. Or required quantity can set up again then application can continue. Also rest of bagging sack quantity can display while bagging progress.

TOTAL BAGGED SACK QUANTITY: Total bagged sack quantity can display since the reset.


TOTAL SACK TIME: Total net sack time can display since the reset.


TOP DEPOT LEVEL CONTROL: System check level with the level sensors in regulation depot.

ALARMS: Operator inform with PLC  unit in system get information from the mechanic cover and sensors about open and close wrongs.
